ev80

side channel systems

    Enhanced wind stability
    160° range of motion
    Available in a stylish range of designs and colours
Incrementally control heat, light glare and privacy.
Use arrows to experience for yourself
view channel types

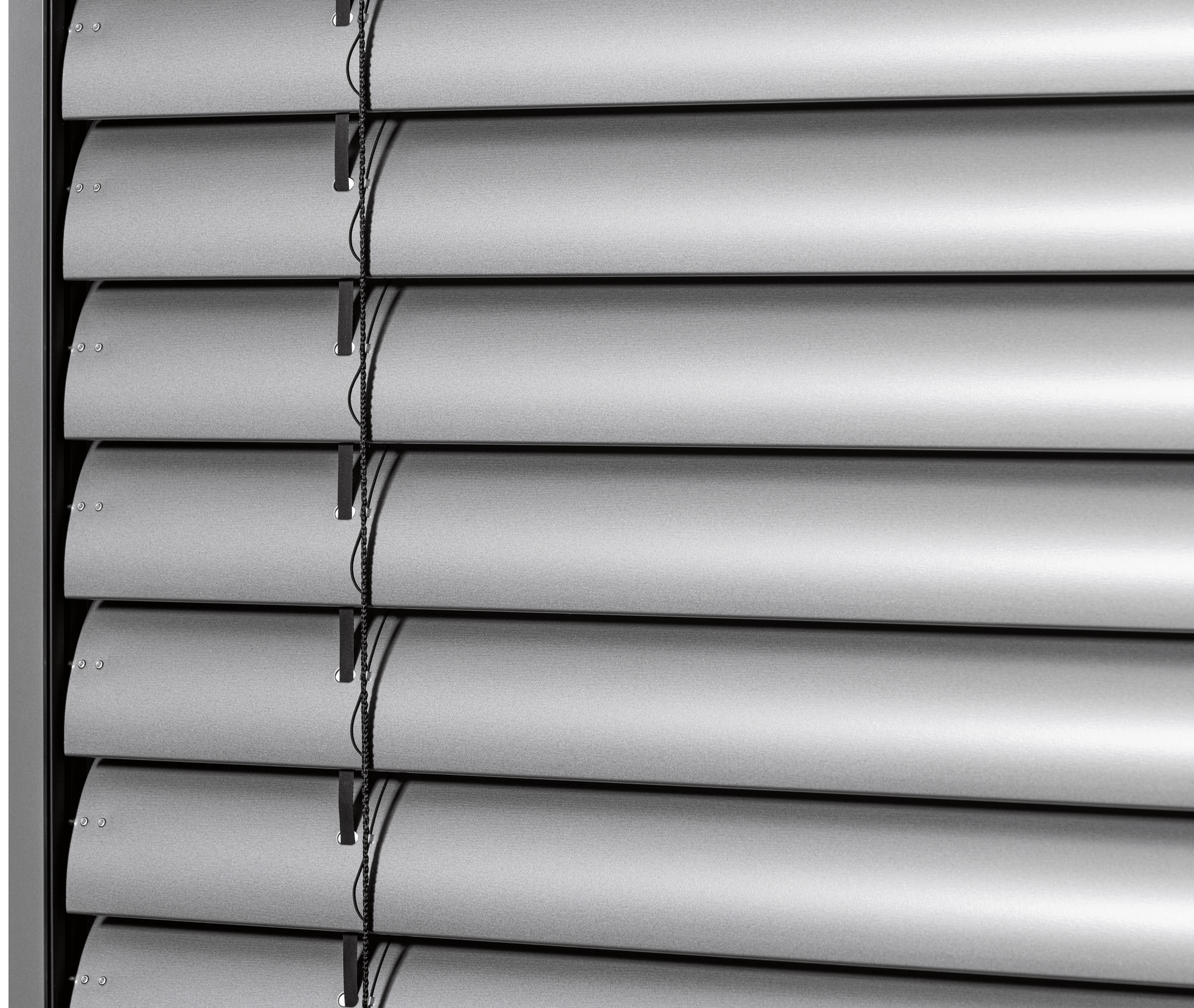

  • Evaya Ev80 Channel Down

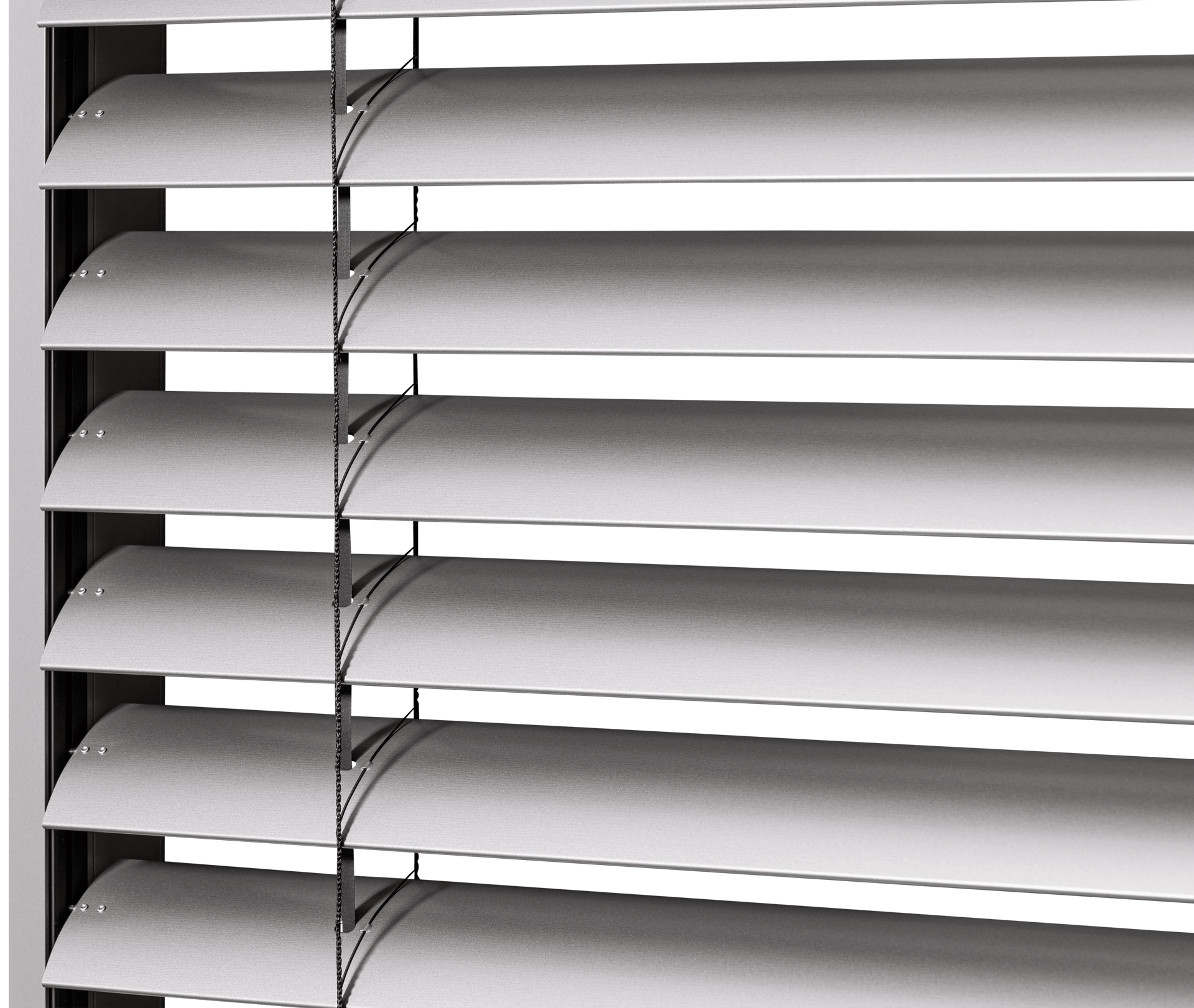

  • Evaya Ev80 Channel Partial Down

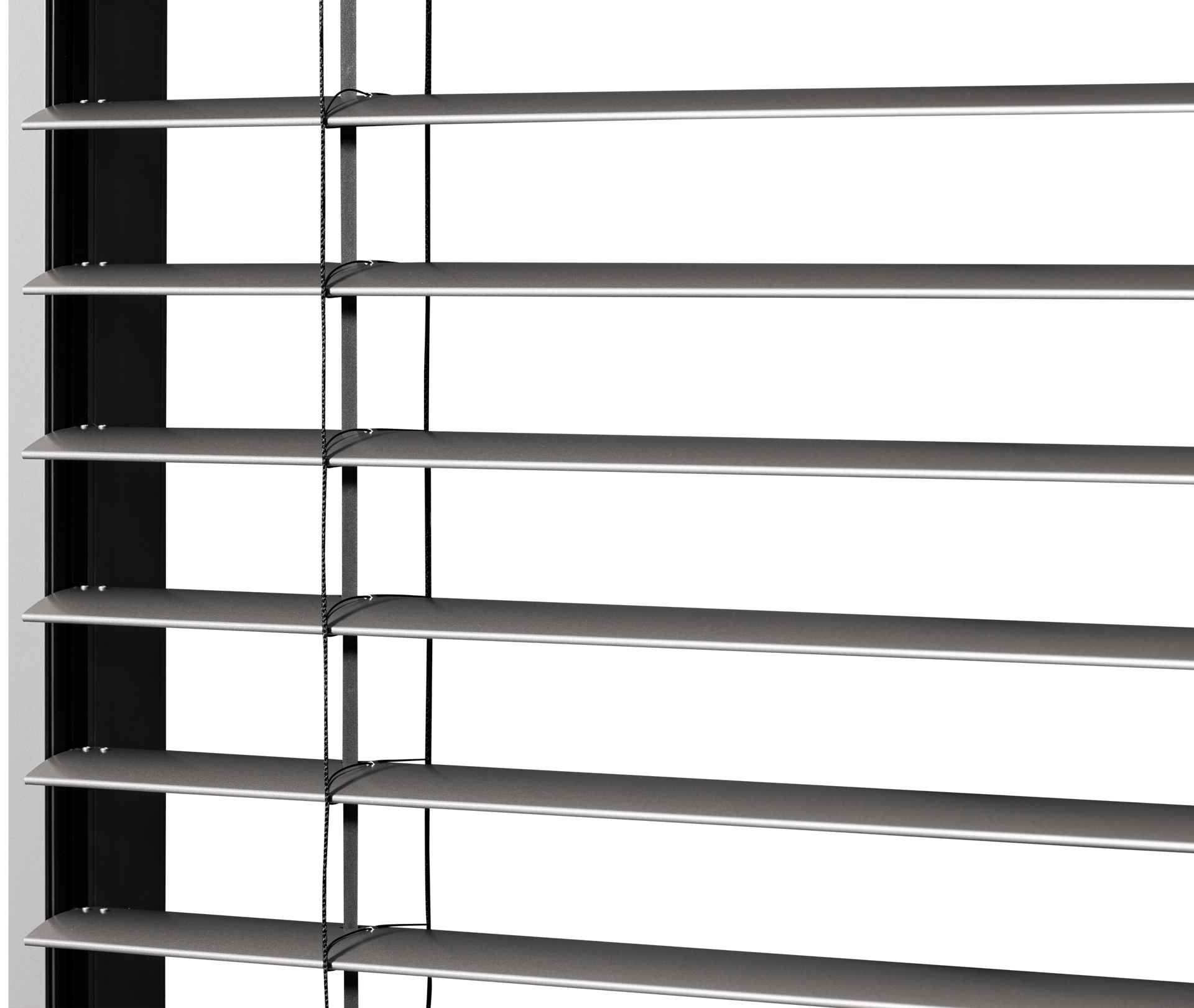

  • Evaya Ev80 Channel Flat

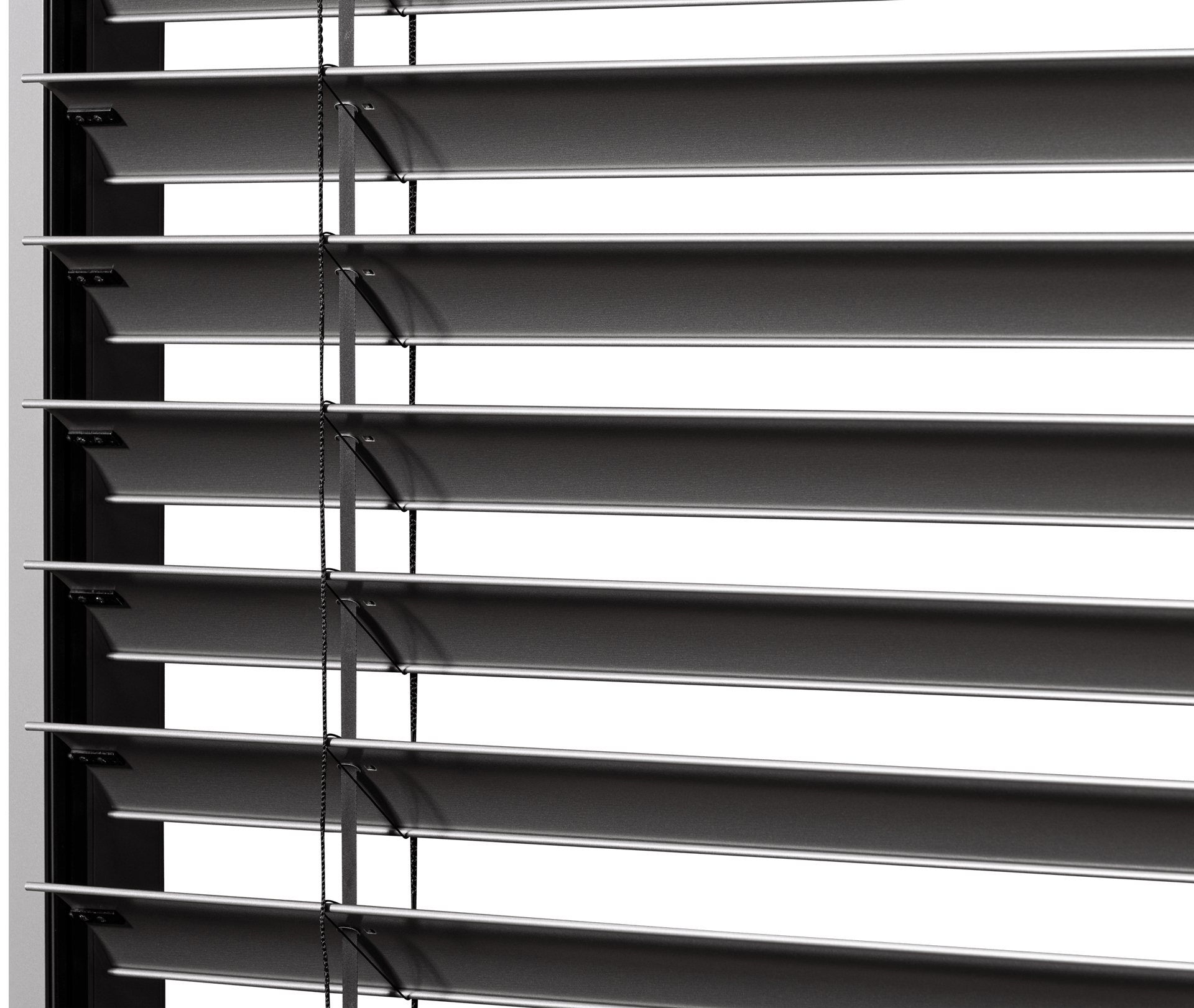

  • Evaya Ev80 Channel Partial Up

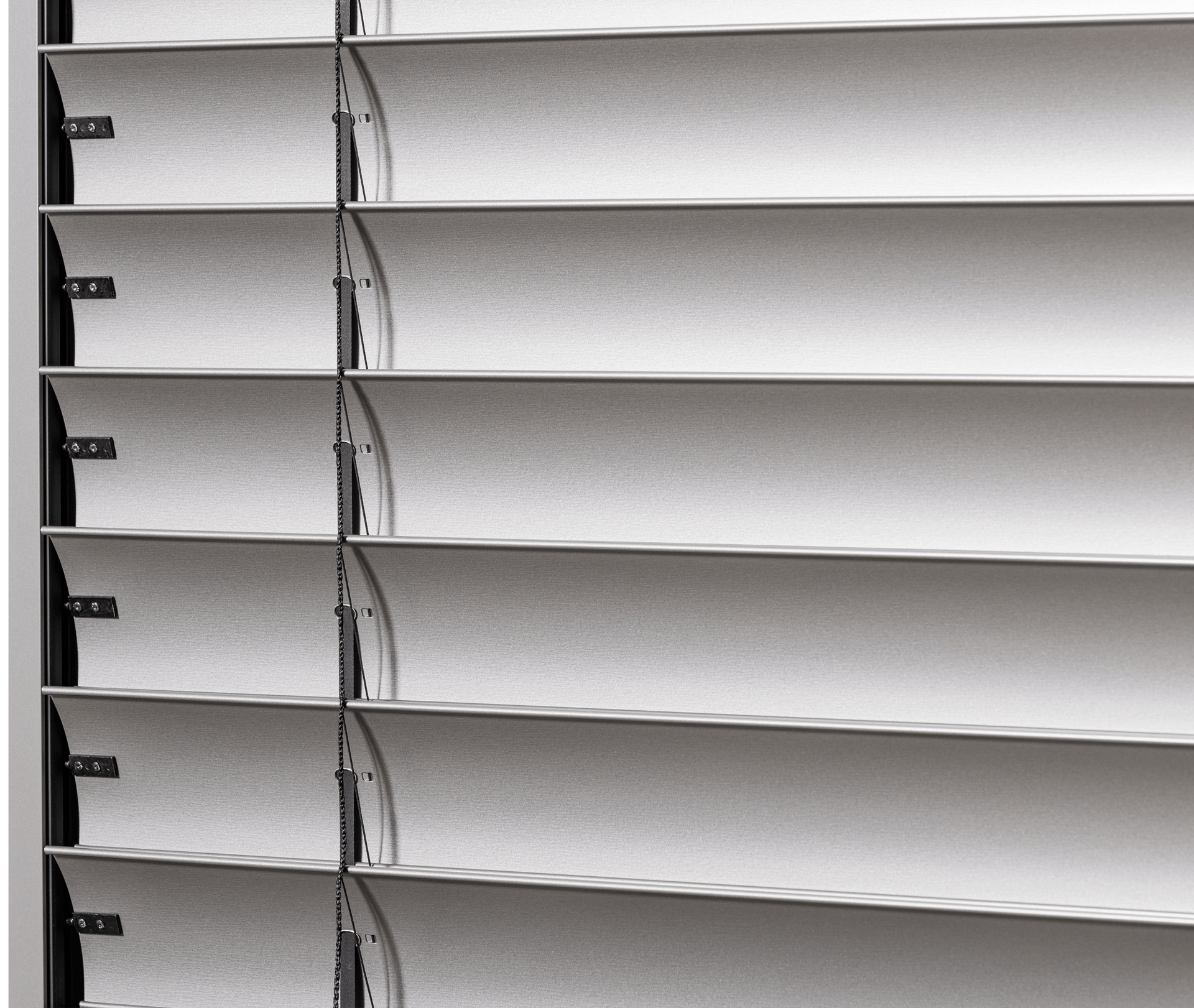

  • Evaya Ev80 Channel Up

External venetians with side channel guidance

Where stable and refined operation is required the benefits of utilising side channel guidance systems far outweigh any other means of securing external venetians. Side pins, constructed from Zamac are an innovative means of stabilising and improving the performance of the ev80. These pins are machine riveted to the slats which then engage into the side channels. Each extruded aluminium side guide has an insert (or keder) which acts to minimise friction, resistance and resonance.

Modern, Innovative designs available in a range of RAL and powder coat colours.

Type A
Type B
Type C
Type D
Type E
Type G
Shroud

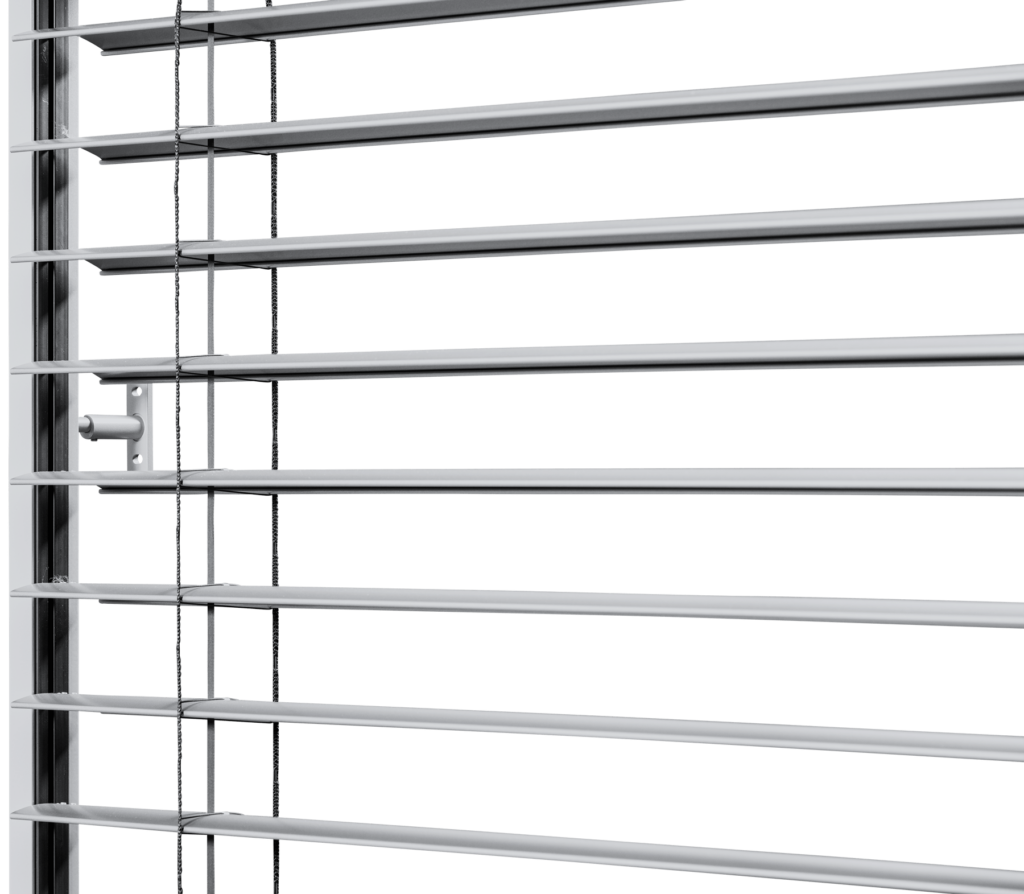

Type A Side Channel

  • Telescopic Projection Brackets
  • 75-165 mm range
  • 22mm wide x 41 mm deep rail
  • Available as an integrated double channel ( A2 )
  • Capable of linking multiple units seamlessly
Ev80 Channel Type A

Type B Side Channel

  • Reveal or Recess Application
  • Ideal for window surrounds or shrouds
  • Minimal visual appearance
  • 22mm wide x 41mm deep rail with 20 mm fixing tab

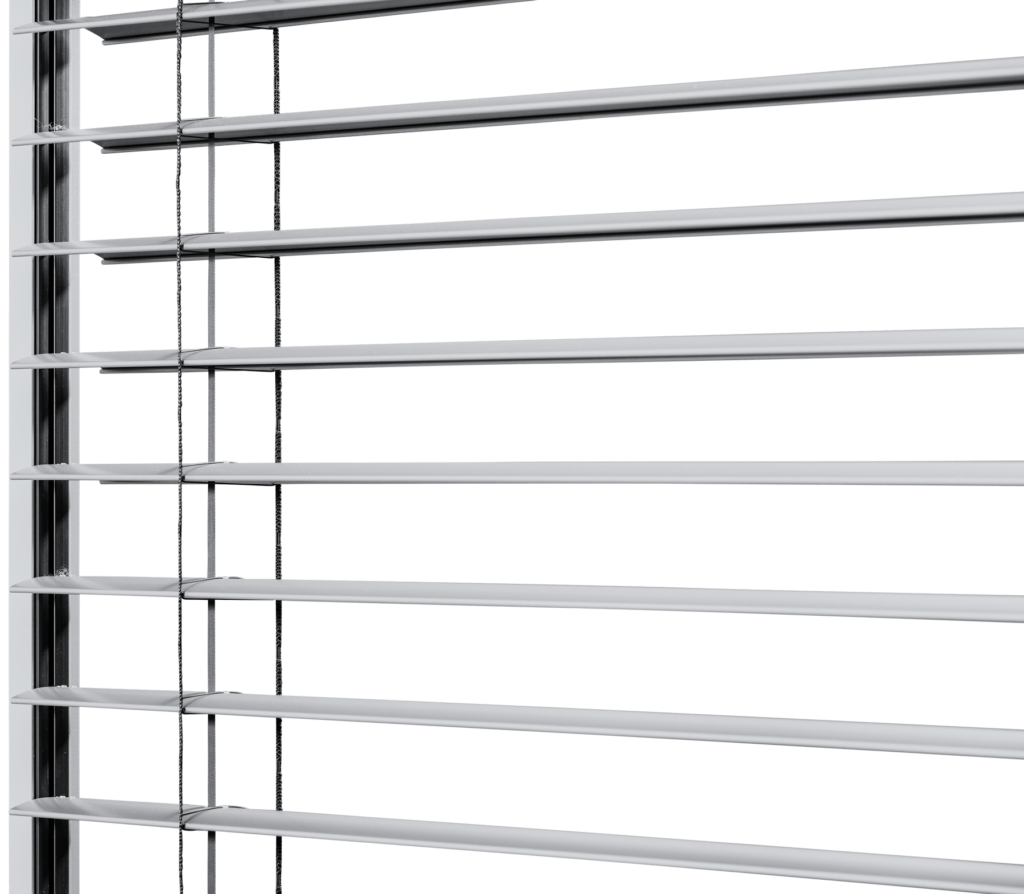

Ev80 Channel Type B

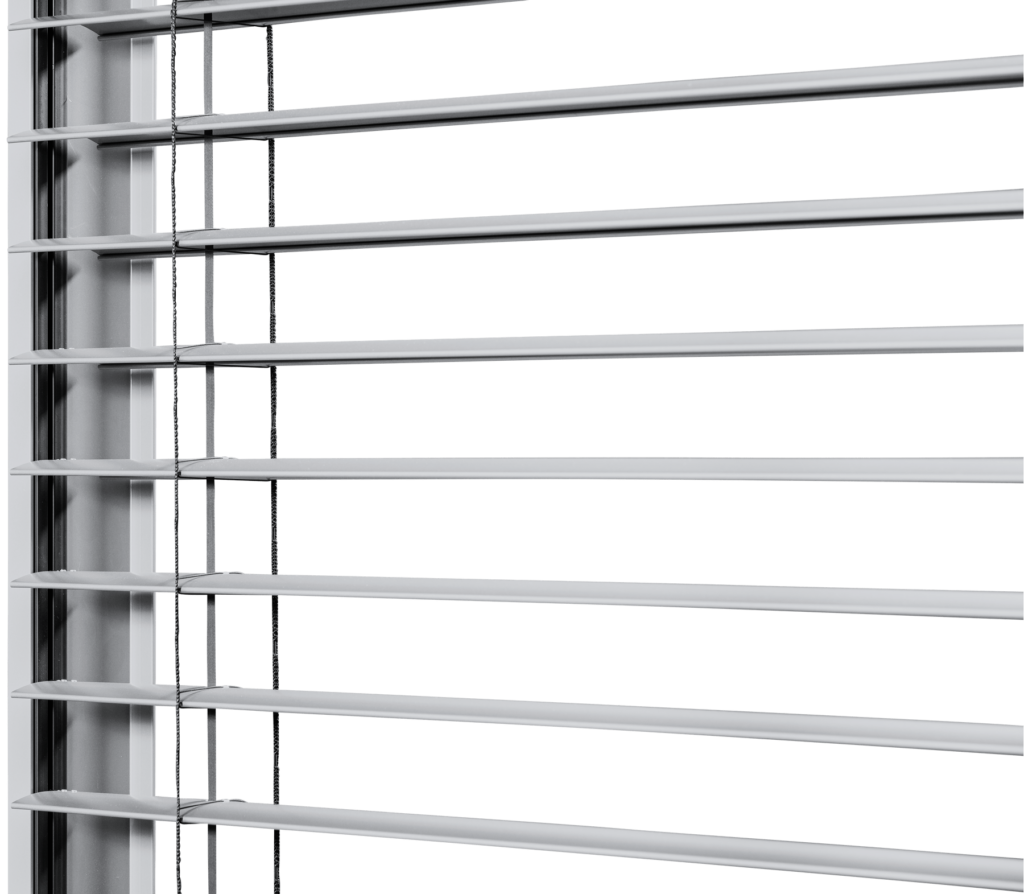

Type C Side Channel

  • Heavy Duty Surface Fit Application
  • Minimal Fastening Points
  • 22mm wide x 44mm footprint with 92 mm projection
  • Unique 22 mm fixing tab
Ev80 Channel Type C

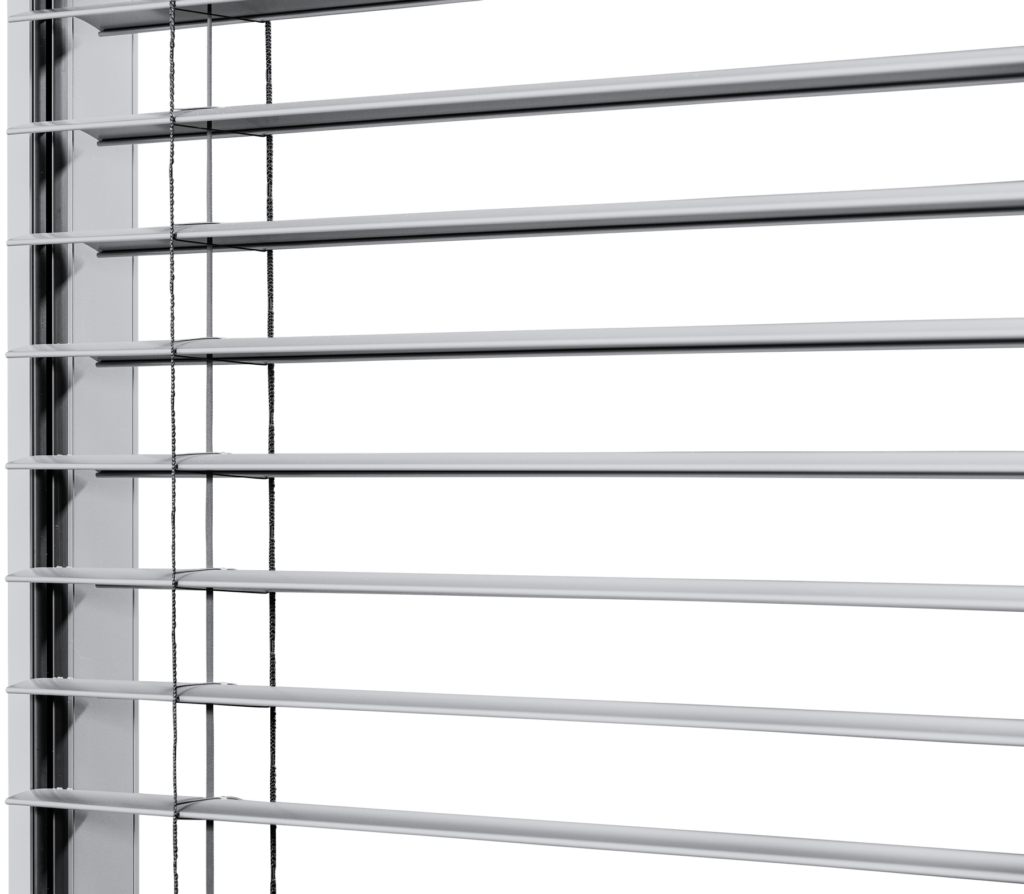

Type D Side Channel

  • Innovative recess or face fit application
  • No visible fastening or anchoring points
  • 22 mm wide x 92 mm projection
  • Available as an integrated double channel ( D2 )
  • Capable of linking multiple units seamlessly
Ev80 Channel Type D

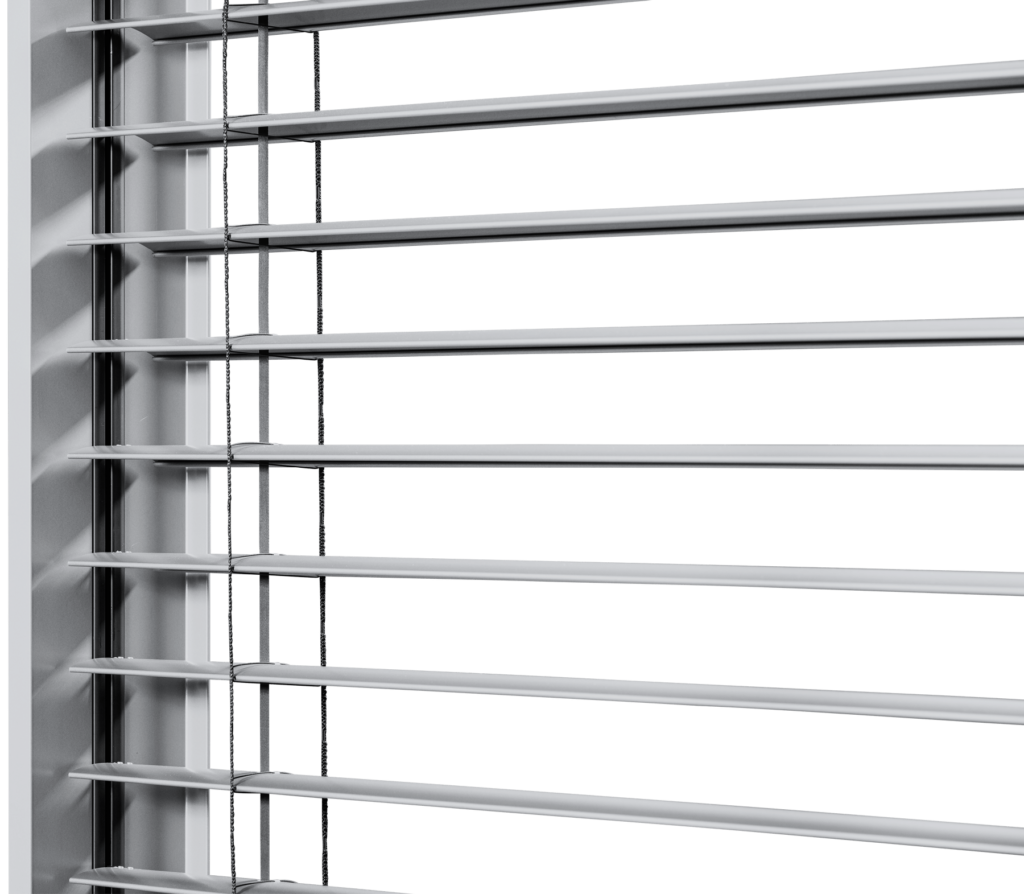

Type E Side Channel

  • Enhanced Wind Stability for ultimate performance
  • Heavy Duty Surface Fit Application
  • Minimal Fixing Points
  • 22mm wide x 44mm footprint with a massive 145mm projection
Ev80 Channel Type E

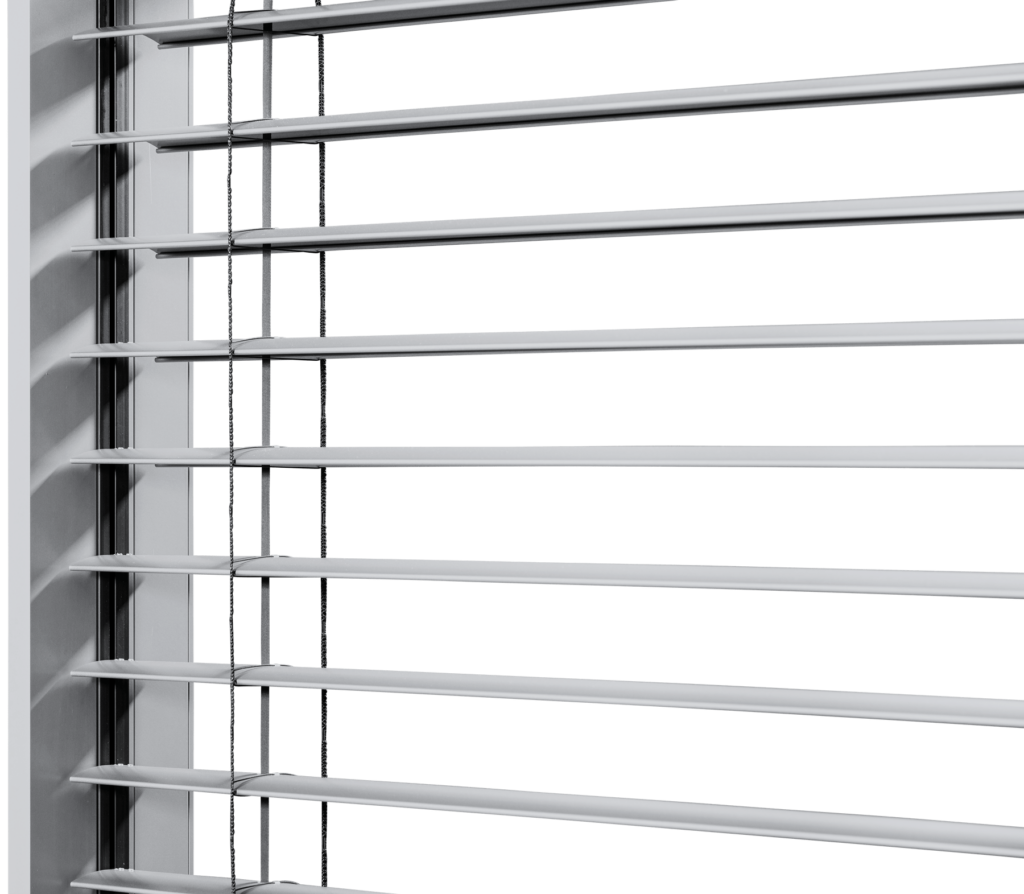

Type G Side Channel

  • Enhanced Wind Stability for ultimate performance
  • Innovative recess or face fit application
  • No visible fastening or anchoring points
  • 22mm wide x 22mm footprint with a massive 145mm projection
Ev80 Channel Type G
